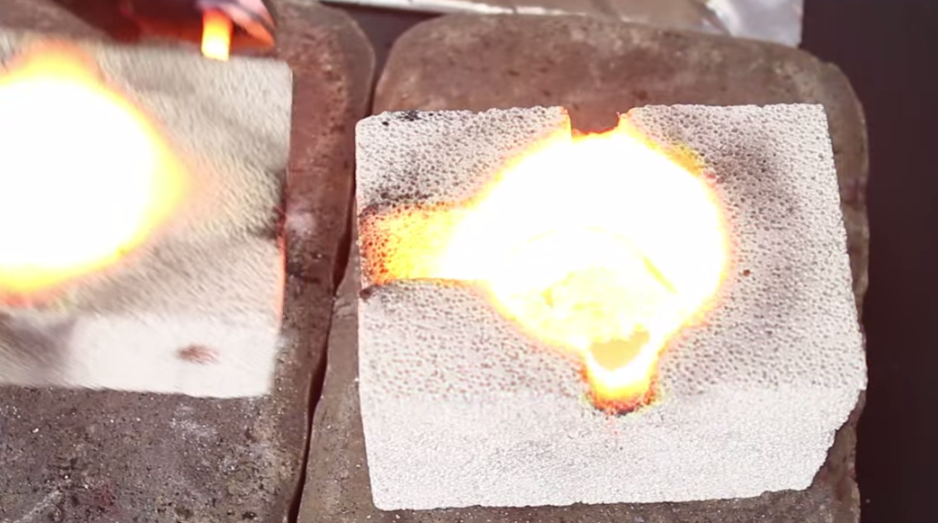

How to hack flashlight batteries and a fire brick, into a desktop arc reaction chamber. …For hobby metal melting, and for science!
Project Inspired By:
This project was originally inspired by Theo Grey and his book, “Mad Science”. After seeing the concept, I couldn’t find any information anywhere on the internet or in libraries about arc furnace experiments, so I set out on my own to achieve these results.
WARNING:
Risk of electric shock, fire hazards, and toxic fumes depending on what material you’re working with. Dust from refractory brick should never be inhaled, as it can damage lungs and cause long term respiratory challenges. This project can reach temperatures in excess of 3,000ºF (1,648ºC) which is well beyond the melting point of hobbyists. Caution, care and expert planning are required to mitigate risks. Have fun, but always think ahead, and remember that every project you try is at your own risk.
The insulating fire bricks I got were the 3” x 4.5” x 9” Alumina-Silicate Brick variety. I got a box of 10 for $33, effectively making them around $3.30 each. I went one step further and designed the furnace so that 2 of them could be made from one brick, cutting the cost in half, making each furnace a pro-rated $1.65 each!
They’re extremely lightweight, and capable of withstanding the temperatures used in steel working, but soft enough you can cut and carve them with kitchen utensils if you need to.
In reading and studying history a bit, I learned that some of the earliest forms of light were made using carbon arc lighting. Large amounts of electricity were pumped through carbon rods, making a bright arc and providing light.
